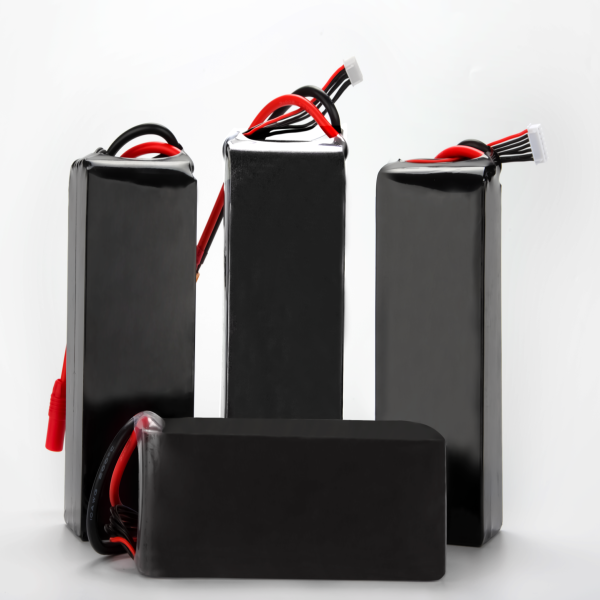

Lynn LiaoWinnie ZhangNancy Yan| AGA Drone Battery Pack |
| Item | Prodct No. | Typical capacity(mAh) |
Approx. dimensions H x W x L (mm) ±5% |
Approx Weight (g) ±5% | Max Discharge Data | |
| Continos Discharge Crrent | Brst Discharge Crrent | |||||
| 25C AVs Lipo Battery | ||||||
| 1 | AGA-8000/25-2S | 8000mAh | 18*59*172 | 374.0 | 25C(200.0A) | 50C(400.0A) |
| 2 | AGA-8000/25-3S | 8000mAh | 27*59*172 | 541.0 | ||
| 3 | AGA-8000/25-4S | 8000mAh | 35*59*172 | 708.0 | ||
| 4 | AGA-8000/25-5S | 8000mAh | 44*59*172 | 875.0 | ||
| 5 | AGA-8000/25-6S | 8000mAh | 52*59*172 | 1040.0 | ||
| 6 | AGA-10000/25-2S | 10000mAh | 22*59*172 | 445.0 | 25C(250.0A) | 50C(500.0A) |
| 7 | AGA-10000/25-3S | 10000mAh | 32*59*172 | 646.0 | ||
| 8 | AGA-10000/25-4S | 10000mAh | 42*59*172 | 848.0 | ||
| 9 | AGA-10000/25-5S | 10000mAh | 52*59*172 | 1050.0 | ||
| 10 | AGA-10000/25-6S | 10000mAh | 62*59*172 | 1250.0 | ||
| 11 | AGA-13000/25-2S | 13000mAh | 20*70*185 | 552.0 | 25C(325.0A) | 50C(650.0A) |
| 12 | AGA-13000/25-3S | 13000mAh | 30*70*185 | 803.0 | ||
| 13 | AGA-13000/25-4S | 13000mAh | 40*70*185 | 1021.0 | ||
| 14 | AGA-13000/25-5S | 13000mAh | 50*70*185 | 1305.0< | ||
| 15 | AGA-13000/25-6S | 13000mAh | 60*70*185 | 1560.0 | ||
| 16 | AGA-16000/25-2S | 16000mAh | 21*75*180 | 668.0 | 25C(400.0A) | 50C(800.0A) |
| 17 | AGA-16000/25-3S | 16000mAh | 32*75*180 | 975.0 | ||
| 18 | AGA-16000/25-4S | 16000mAh | 42*75*180 | 1282.0 | ||
| 19 | AGA-16000/25-5S | 16000mAh | 53*75*180 | 1590.0 | ||
| 20 | AGA-16000/25-6S | 16000mAh | 63*75*180 | 1900.0 | ||
| 21 | AGA-22000/25-2S | 22000mAh | 23*91*195 | 872.0 | 25C(550.0A) | 50C(1100.0A) |
| 22 | AGA-22000/25-3S | 22000mAh | 33*91*195 | 1283.0 | ||
| 23 | AGA-22000/25-4S | 22000mAh | 44*91*195 | 1694.0 | ||
| 24 | AGA-22000/25-5S | 22000mAh | 55*91*195 | 2105.0 | ||
| 25 | AGA-22000/25-6S | 22000mAh | 66*91*195 | 2520.0 | ||
| 30C Agricltre/Pesticide AVs Lipo Battery | ||||||
| 26 | AGA-16000/30-6S-AG/N | 16000mAh | 68*75*185 | 1980.0 | 30C(480.0A) | 60C(960.0A) |
| 27 | AGA-22000/30-6S-AG/N | 22000mAh | 72*91*205 | 2680.0 | 30C(660.0A) | 60C(1320.0A) |
